2.5A Dual Bridge Brushed DC Motor Drive Controller Board ModuleNote：2022.3.24，Upgrade from Blue to R

2.5A Dual Bridge Brushed DC Motor Drive ...

ΚΩΔΙΚΟΣ: 50234

4,40 €

Κύρια χαρακτηριστικά

Αναλυτικές λεπτομέρειες

Διαθεσιμότητα: 10 σε απόθεμα

Αγαπημένα

Αφαίρεση

Vesc Motor Controller|Mach3 Controller Board|High Current Capacity:Dual bridge design supports up to 2.5A, ideal for power-hungry Arduino smart car robots.

Potentiometer Control:Comes with a potentiometer for precise Arduino motor control, enhancing user experience.

Low Standby Current:Operates with a negligible < 0.1ua standby current, ensuring energy efficiency.

Customizable Mounting:Features 2mm mounting holes for easy integration into various projects.

Wide Operating Temperature:Operates across a broad temperature range, suitable for diverse environments.

Ως εξάρτημα, δεν καλύπτεται από εγγύηση

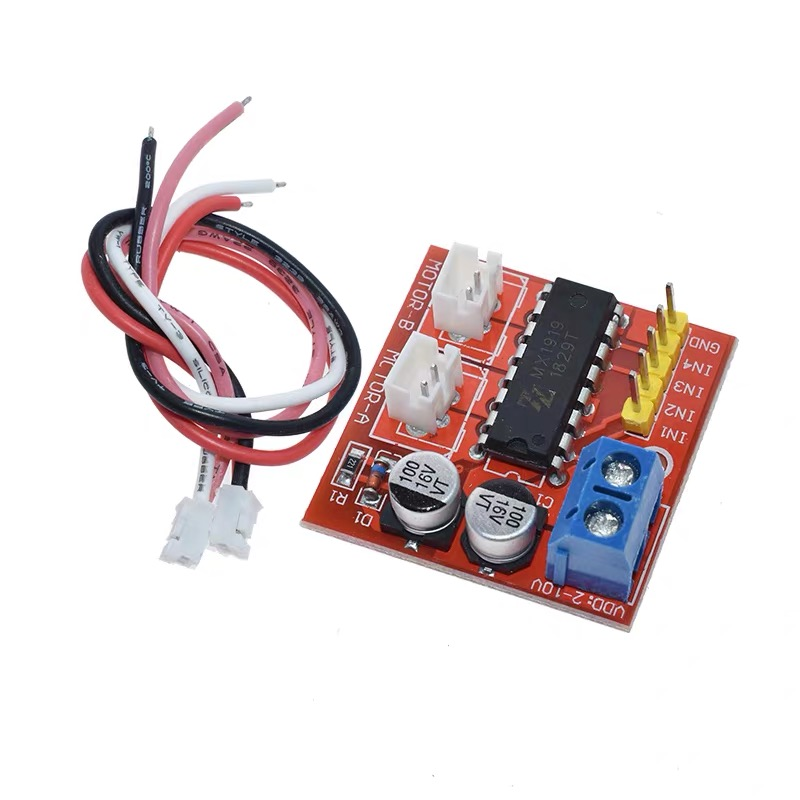

Two-Way H-Bridge Motor Driver

Dual Motor Control: Drives two DC motors or one 4-wire two-phase stepper motor simultaneously.
Voltage Range: Module supply voltage: 2V-10V | Signal input voltage: 1.8V-7V.
Current Capacity: Single working current 2.5A, with ultra-low standby current (<0.1µA).
Safety Features: Built-in anti-common state conduction circuit prevents motor malfunction when input is suspended.
Overheat Protection: Integrated thermal shutdown (TSD) with hysteresis effect, preventing damage from motor stalling.

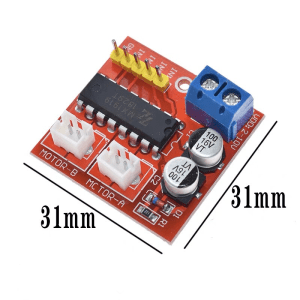

Compact Design: Dimensions: 31 × 32 × 5mm (L × W × H), ideal for assembly and vehicle applications.
Mounting & Weight: 2mm mounting hole diameter | Lightweight at just 11g.
