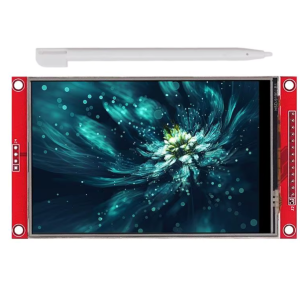

4.0 INCH TFT

ΚΩΔΙΚΟΣ: 49500

37,99 €

Κύρια χαρακτηριστικά

Αναλυτικές λεπτομέρειες

Διαθεσιμότητα: 1 σε απόθεμα

Αγαπημένα

Αφαίρεση

Robust Design:Military grade process standard ensures long-term stable work in various environments.
Touch Screen Capability:Optional touch function enhances user interaction with the 4.0 inch LCD module.
Extensive Sample Programs:Comes with a wealth of sample programs for convenient expansion experimentation.
Versatile Interface Options:Supports SPI serial bus with a few IOs, making it easy to light up the display.
Lcd Print Arduino|Lcdh|High Resolution Display:480×320 HD resolution ensures crisp, clear visuals on the 4.0 inch TFT LCD screen.

Ως εξάρτημα, δεν καλύπτεται από εγγύηση

Product Parameters

Name	Parameter
Display Color	RGB 65K color
SKU	With touch screen: MSP4021
SKU	Without touch screen: MSP4020
Screen Size	4.0(inch)
Type	TFT
Driver IC	ST7796S
Resolution	480*320 (Pixel)
Module Interface	4-wire SPI interface
Active Area (AA area)	48.96×73.44(mm)

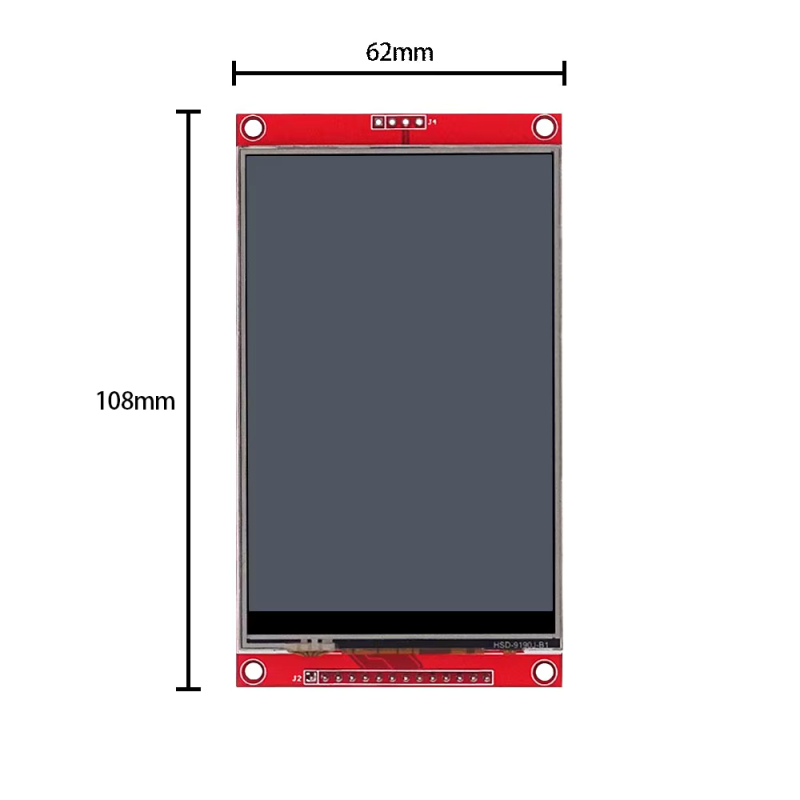

Module PCB Size	56.34×98(mm)
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃
VCC power voltage	3.3V~5V
Logic IO port voltage	3.3V(TTL)
Power Consumption	About 90mA
Product Weight	–
