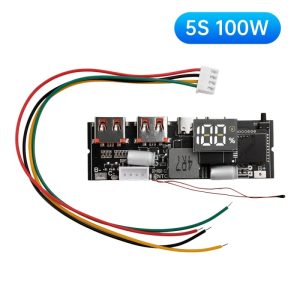

5S 100W Fast Charging DoubleType-C USB T...

ΚΩΔΙΚΟΣ: 102171

30,00 €

Κύρια χαρακτηριστικά

Αναλυτικές λεπτομέρειες

Διαθεσιμότητα: 1 σε απόθεμα

This module is designed for building custom portable chargers using 5S battery configurations.
It is fully compatible with various fast charging protocols, including QC, PD, PPS, SCP, and VOOC.
The module features multiple USB ports and a C-Port for two-way fast charging.
It includes a digital display for the charge level indicator and NTC temperature protection.

The motherboard has 4 USB ports by default, namely Type-C1, Type-C2, Type-A1, and Type-A2.
Type-C1 and Type-C2 support AFC/FCP/SCP/PD3.1 input protocols and support PPS/PD3.1/UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP output protocols.
Type-A1/Type-A2 support UFCS/PE1.1/PE2.0/QC3+/QC3.0/QC2.0/AFC/FCP/SCP/SFCP output protocols.

Voltage, Current and Power:
PPS/PD3.1: 20V@5A, 3.3V – 21V@5A, Maxin100W/Maxout60W
UFCS: 3.4 – 21V@5A, Maxin100W/Maxout60W
QC2.0: 5V3A/9V3A/12V2.8A/20V1.5A
QC3.0: 3.6V – 20V@200mV/step, 5V@3A/9V@3A/12V@2.8A/20V@1.5A
QC3+: 3.6V – 20V@20mV/step, 5V@3A/9V@3A/12V@2.8A/20V@1.5A
AFC: 5V3A/9V3A/12V2.8A
FCP: 5V3A/9V3A/12V2.8A
SCP: OUT 3.3V – 12V, IN 5V/9V/10V/12V, supports 10V4A
PE1.1: 5V/7V/9V/12V
PE2.0: 5V – 12V@500mV/step
SFCP: 5V/9V/12V
