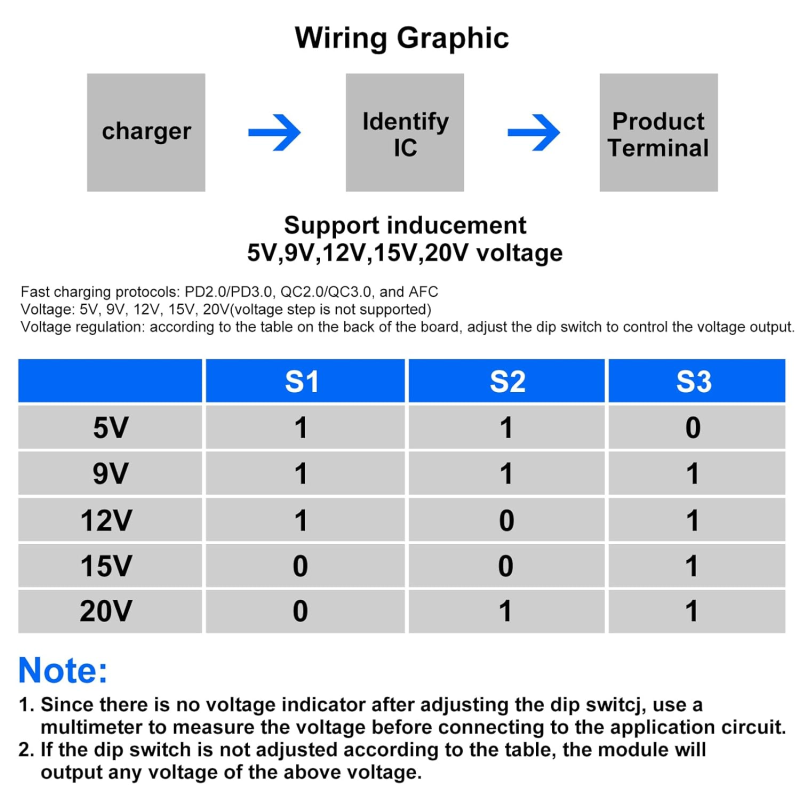

Fast charge support protocol: PD2.0/PD3.0, QC2.0/QC3.0, AFC

Support voltage: 5V, 9V, 12V, 15V, 20V (voltage step is not supported)

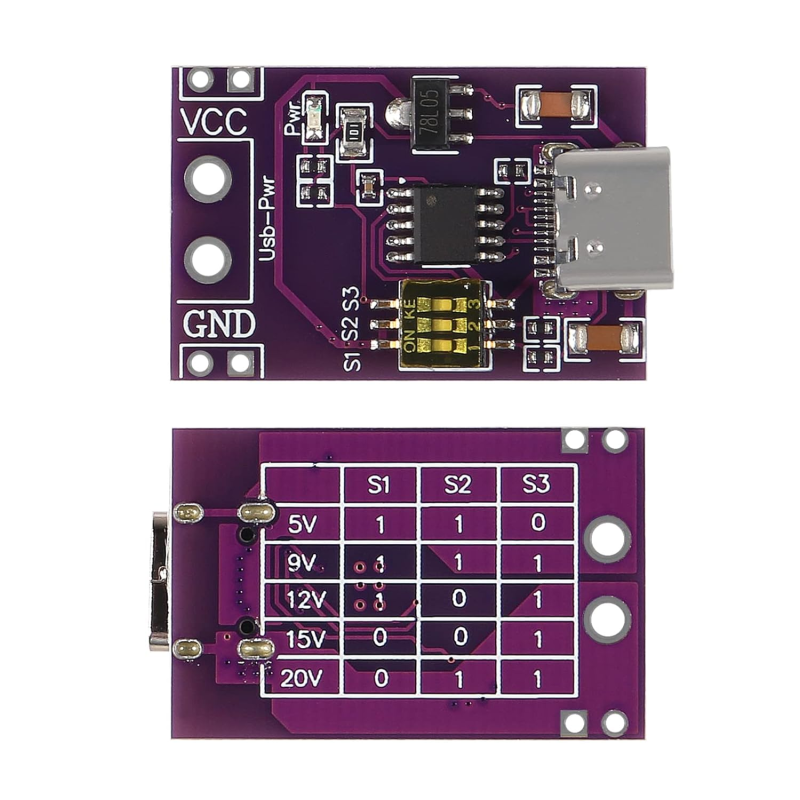

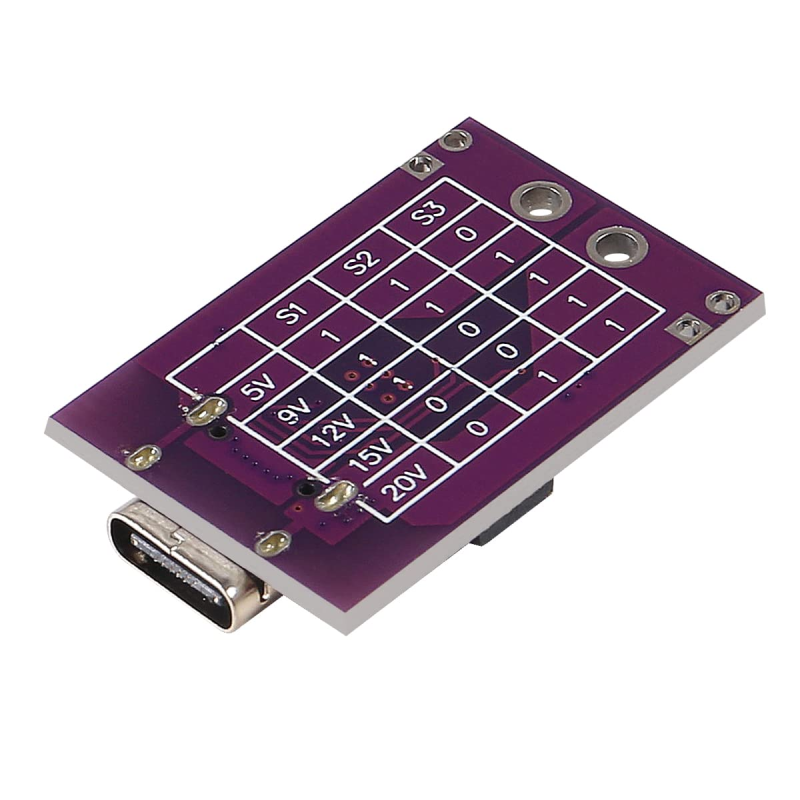

Voltage adjustment method: According to the table on the back of the board, adjust the DIP switch to control the voltage output.

Note: 1. After adjusting the DIP switch, because there is no voltage indicator, it is recommended to use a multimeter to measure the voltage before connecting to the application circuit.

Note: 2. If the DIP switch is not adjusted according to the table, the module will output any one of the above voltages.
