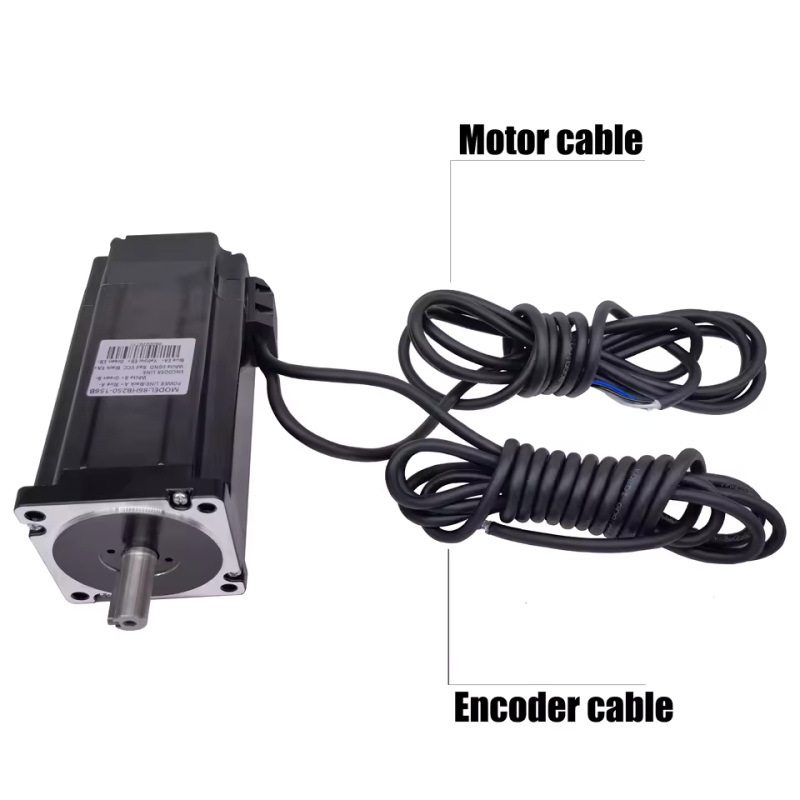

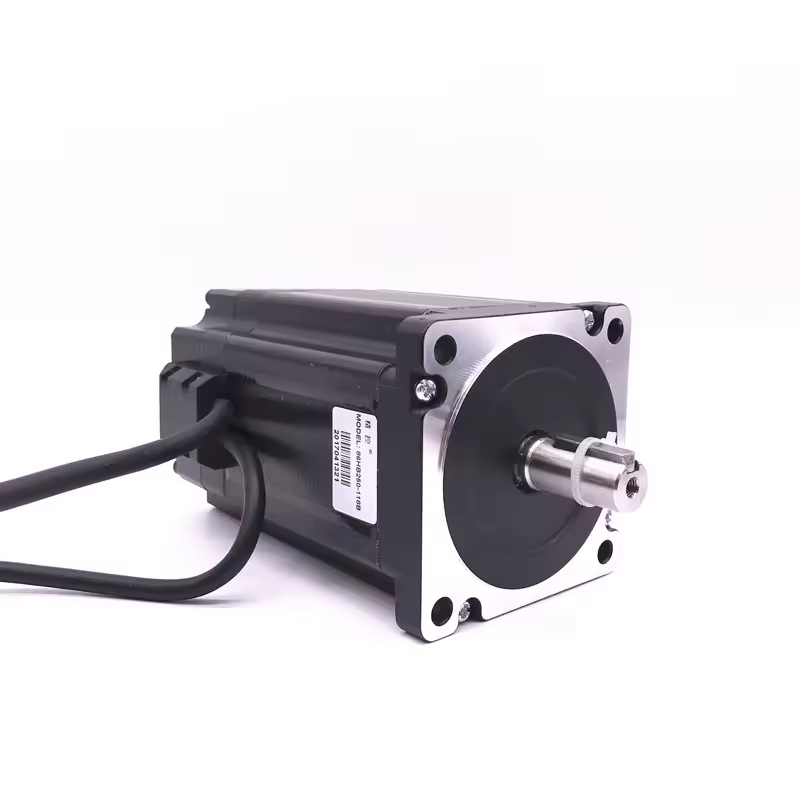

Closed loop stepper motor NEMA34 12.5Nm ...
ΚΩΔΙΚΟΣ: 48123
274,99 €
Κύρια χαρακτηριστικά
Διαθεσιμότητα: 10 σε απόθεμα
Low heating / high efficiency (quiescent, almost zero current, no fever).
Smooth and accurate (space vector current control algorithm based on feedback encoder and vector smoothing filtering technology) has a good resistance to the low frequency resonance of traditional stepper motor.
High speed response (advanced servo control technology provides powerful torque output, so that the system has very high dynamic response, stepping servo speed up to 600-2000RPM).

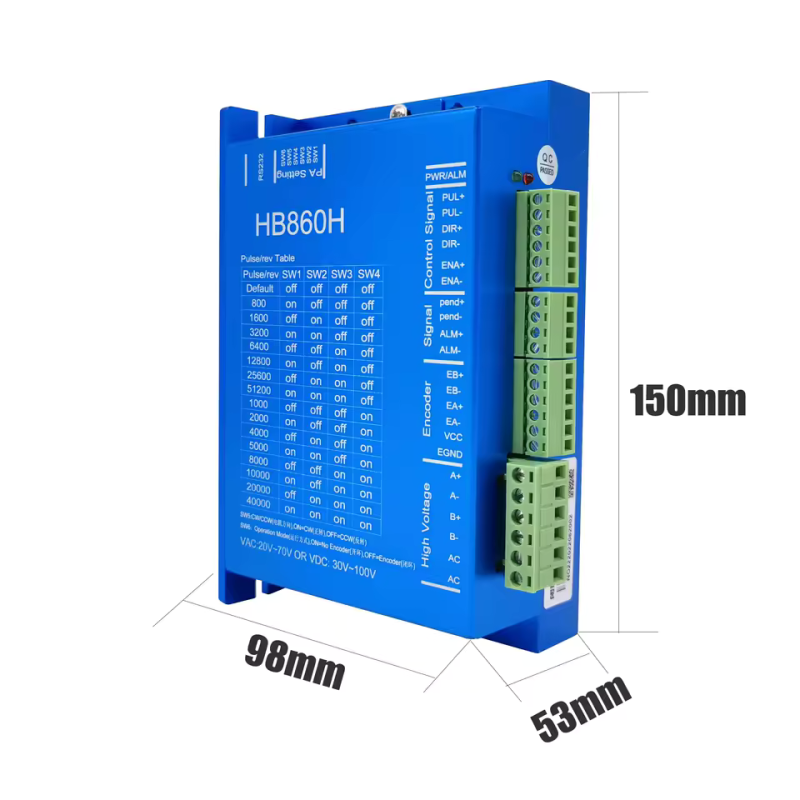

Working Current: AC 20-70V or DC 30-100V
Electric Current: 6A
Pulse Frequency: 200Hz/500kHz
Adaptive Motors: 60HB250-112, 86HB250-80, 86HB250-118, 86HB250-156
Operating Ambient Temperature: 0°C to 50°C
Communication Mode: RS322 serial port and debug panel phase connection
Total Length of Fuselage: 176mm
Fuselage Length: 156mm
Static Torque: 12N·m
Rated Current: 6A
Nozzle Diameter: 73mm
Shaft Length: 33mm
Keyway: 5525
Maximum Speed: 2000rpm
Rated Speed: 1000rpm
Step Angle: 1.8°
Phase Resistance: 0.65Ω
Phase Inductance: 5.8mH
