Cloud L10 Laser Engraving Machine - Image 2

Cloud L10 Laser Engraving Machine

ΚΩΔΙΚΟΣ: 100512

899,99 €

Κύρια χαρακτηριστικά

Αναλυτικές λεπτομέρειες

Διαθεσιμότητα: 1 σε απόθεμα

Αγαπημένα

Αφαίρεση

Remarkable Cutting and Engraving Power
The Cloud L10 laser engraver has a machine power of 80W and a continuous pulse output power of 10W. With air support and precise focus, the Cloud L10 laser engraving machine is capable of cutting a 10mm wooden sheet and a 5mm black acrylic board in ONE PASS.

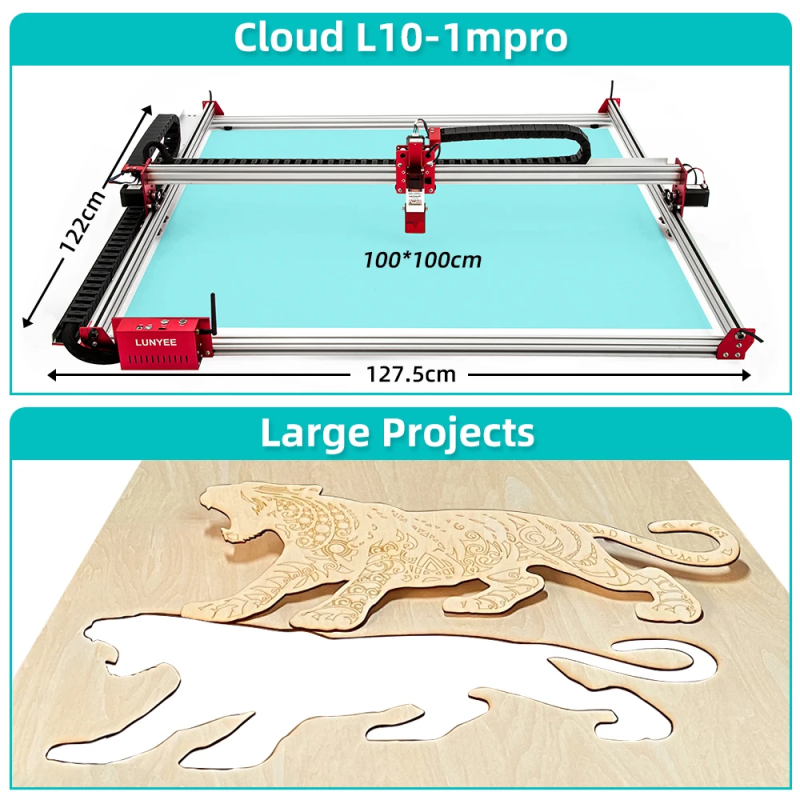

Large Working Area, No Engraving Height Limitation
1000*1000mm is the largest engraving area on the market. At the same time, you can engrave over 100 materials such as balsa, wood, plastic, leather, black acrylic, etc.

Dual Mode Selection to Meet Different Engraving Needs
Supports laser mode and CNC mode, allowing you to choose based on your needs. It can also be paired with a rotary axis to perform your creations on a cylinder. Unleash your creativity to meet your various needs.

✔Sturdy Structure, Easy Installation
The Cloud L10 laser engraver machine adopts a full-metal structural frame. The entire engraving machine uses a modular design, which makes assembling, repairing, and updating machine parts easy. You only need 6 screws to complete the installation, and you can also install other accessories based on your needs.

Support for Wireless, Computer, and Other System Control
Cloud L10 is compatible with various engraving software on the market (LaserGRBL & Lightburn), supports Win 7/Win 8/XP/Win10, Linux, and Mac & IOS systems, and also supports wifi wireless control, allowing you to control it from your phone.

Optical Output Power: 10W
Current: 1.7A

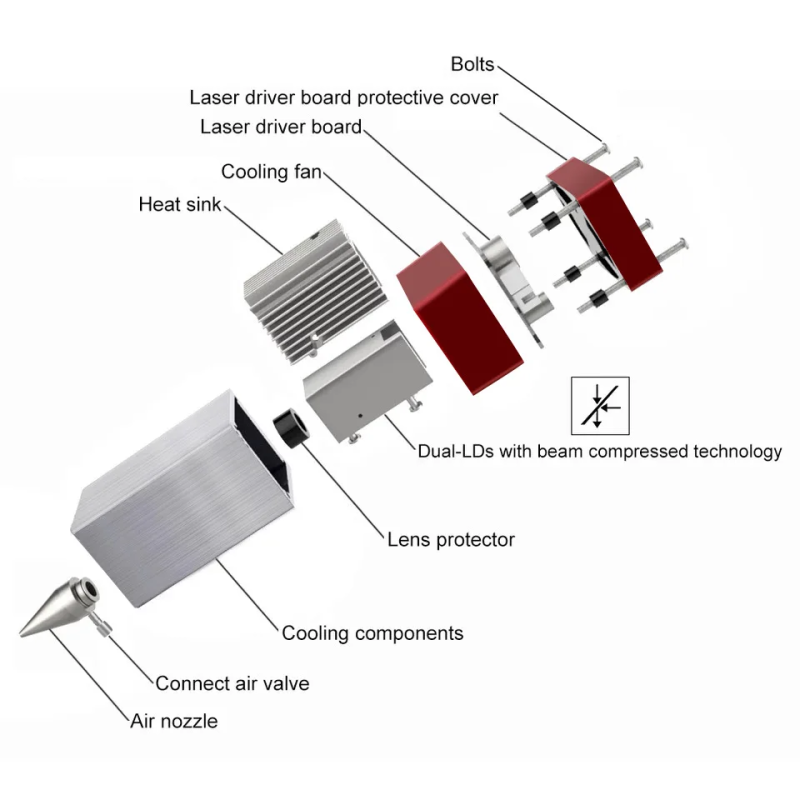

Laser Tube: 2xLD + FAC + C-Lens
Laser Wavelength: 445nm ± 5nm
Beam Shape: Dot (fixed focus)
Can Be Connected to Air Pump: YES
Operating Voltage: DC 24V
Focus: 0.08*0.08
PWM/TTL Input: 0-5V
Input Interface: XH2.54-3Pin (+, -, PWM/TTL)
TTL Output Power: > 1K Hz output power = continuous power x 40%
Operating Frequency: <30KHz
Laser Class: Class IV
Safe Temperature Range: 15℃ ~ 40℃
Lifespan: 15000 ~ 20000 hours
Anti-static: Up to 25kV static electricity can be eliminated
Shell: Frosted material, good heat dissipation
Magnetic Blower Protective Shell: Forms an air channel, has good heat dissipation, and protects eyes and lasers.

Machine Model: Cloud L10
Minimum Machine Size: 12201275222mm
Laser Z-Plate Adjustment Range: 135mm
XY Maximum Stroke: 1000mm * 1000mm
Minimum Package Weight: 10 kg
Body Material: Full Metal Aluminum Alloy
Operating Mode: Mobile phone/computer
Power Supply Size: 100-220V 24V 5A

Material: Durable Aluminum Alloy
CNC or Not: CNC Technology for Precise Finishing

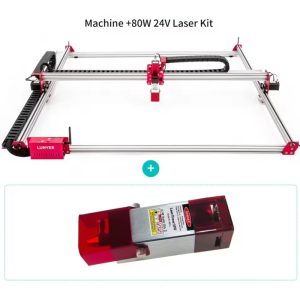

Laser Module: 80W Air Assist Laser Module for Powerful Cutting Performance
Working Area: 1000*1000mm for Large Projects
Spray: 775 Motor for Efficient and Stable Operation
Design and Style: Modern and Professional, with Easy Assembly

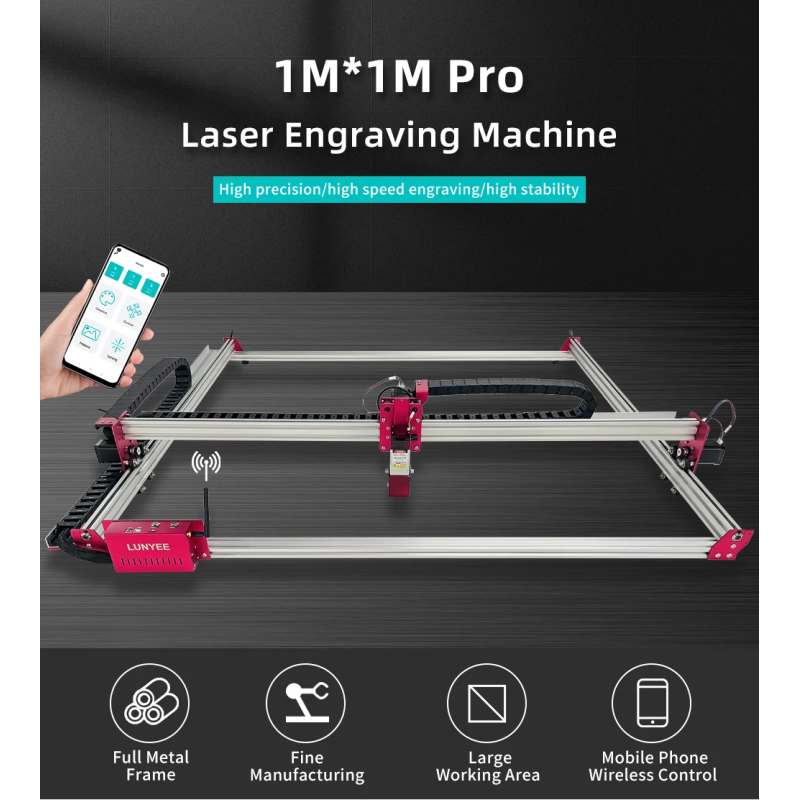

Model: 1M1M Pro
Power Supply: 100-220V 24V 5A
XYZ Stroke: 1000940mm
XY Stroke: 1000940mm
Engraving Speed: <15000mm/min
Frame Material: Metal Aluminum Alloy
Supported File Formats: Picture format, DXF, PLT, AI, NC, G Code, etc.
Operation Mode: Mobile Phone, Computer, Offline Controller
Machine Dimensions: 12201275*222mm
