Feature:

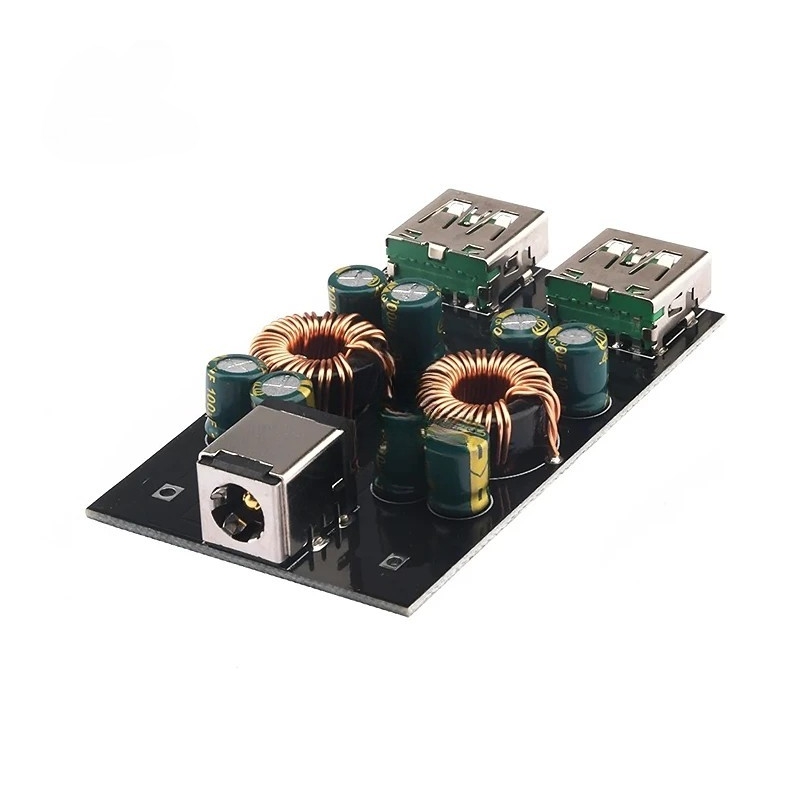

1. Adopt high-efficiency and full-power external MOS tube

2. Double-wire parallel-wound sendust magnetic ring, high charging efficiency

3. Lower heat generation under charging power

4. Dual parallel low-resistance electrolytic capacitors + 6 1206 ceramic capacitors at the same time input anti-reverse connection using a dedicated MOS tube for anti-reverse connection

5. Support most mobile phones on the market

Specifications:

1. Indicator light: blue light is output indicator, red light is fast charge status indicator

2. Dual independent current limiting

3. Support multi-protocol: USB PD3.0 (PPS) support

Qualcomm QC4+/QC4.0/QC3.0 support

Huawei SCP/FCP support

OPPO VOOC partial support

Apple 2.4A support

Samsung AFC support

OnePlus DASH support

VIVO 9V2A dual-engine flash charging support

MediaTek PE2.0 support

Precautions:

1. When the USB port and TYPE_C port are plugged into the mobile phone at the same time, both ports are 5V output!

2. For low-voltage and high-current fast charging, please use the original data cable. If you want to measure the charging voltage and current, you must use a low-resistance USB meter! Otherwise it will affect the charging current!

3. USB port is required to charge OPPO and OnePlus mobile phones! Protocols such as QC4+/QC4.0/PD3.0 must use TYPE_C port!

4. When the power supply voltage is higher than 21 volts, the C-port PD protocol supports up to 20V3A output, and the module is small. Please ventilate and dissipate it when used in a notebook with PD charging!

5. TYPE_C port is used for output charging; with C-TO-C/TYPE_C male-to-male dual-head data cable to charge mobile phones or laptops!
