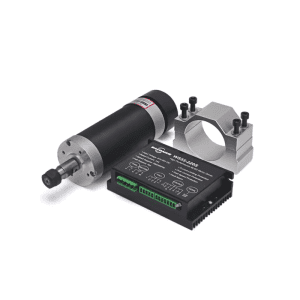

ER11 BLDC 600W Spindle Motor for CNC Router

ER11 BLDC 600W Spindle Motor for CNC Router - Image 2

ER11 BLDC 600W Spindle Motor for CNC Rou...

ΚΩΔΙΚΟΣ: 100505

399,99 €

Κύρια χαρακτηριστικά

Αναλυτικές λεπτομέρειες

Διαθεσιμότητα: 1 σε απόθεμα

Αγαπημένα

Αφαίρεση

Daedalus’s brushless motor can reduce the interference of electric sparks on remote control radio equipment. The friction is greatly reduced during operation, and it has the characteristics of low interference, low noise, durability, and stable operation. The biggest feature of the old version is fast heat dissipation.

600W Spindle Motor ER11 Parameter

Power: 600W
Diameter: 55mm
Operating Voltage: 48VDC
Speed: 0-9000rpm
Cooling: Air cooled
Collets: ER11
Spindle Accuracy: 0.01-0.03mm
Can be used for: Wood carving, PCB drilling

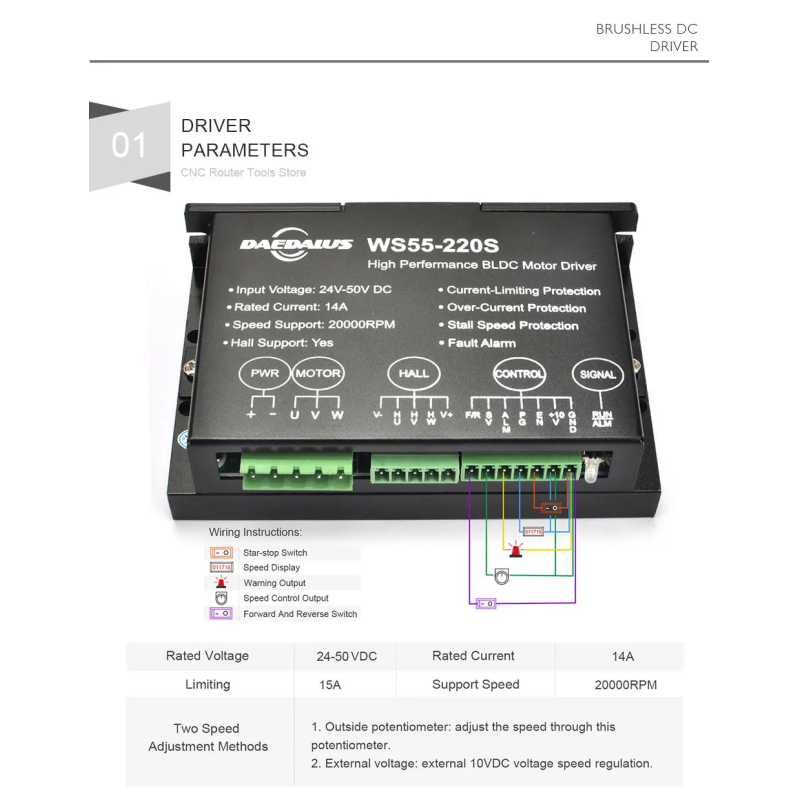

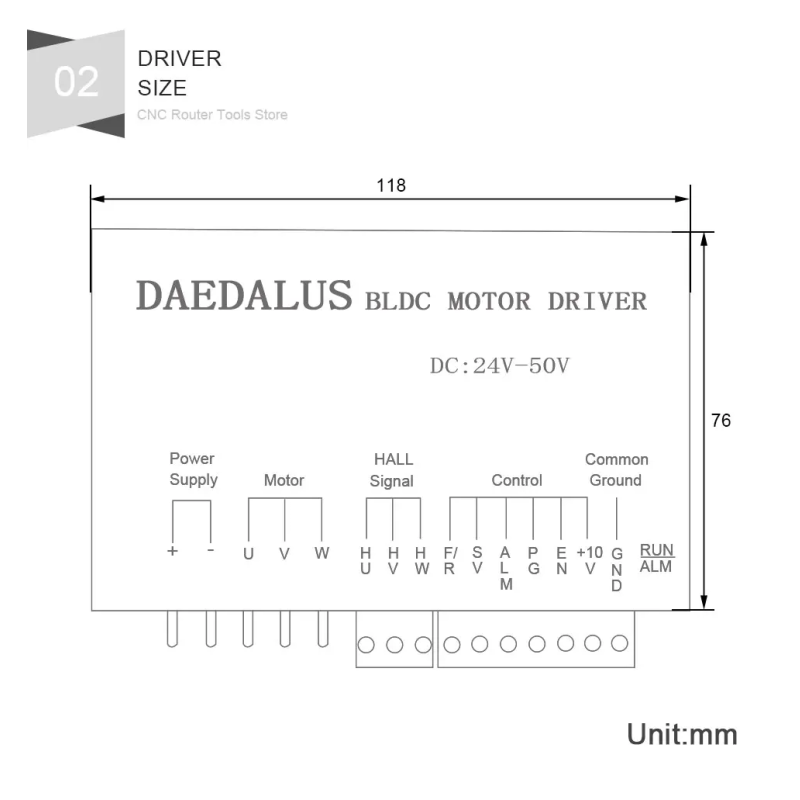

WS55-220S BLDC Motor Driver Parameter

Rated Voltage: 20-50VDC
Rated Current: 14A
Limiting: 15A
Support Hall: Yes
Current-Limiting Protection: Yes
Over-Current Protection: Yes
Stall Speed Protection: Yes
Fault Alarm: Yes
Rotating Speed: Supports speeds above 20000RPM

Two Speed Adjustment Methods:

Outside Potentiometer: Adjust the speed through this potentiometer.

External Voltage: External 10VDC voltage speed regulation.

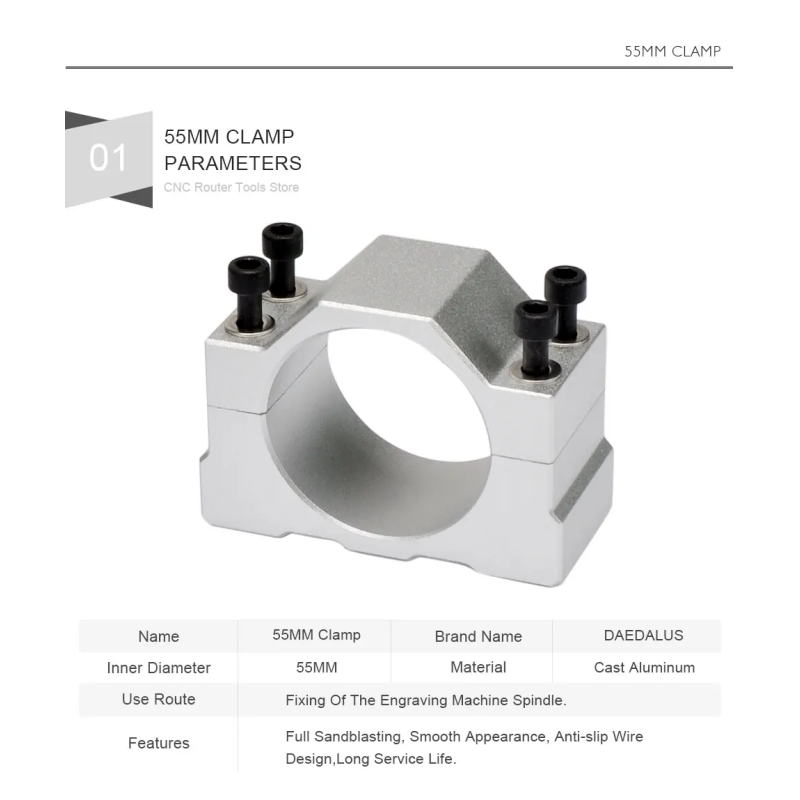

55mm Clamp Parameters

Brand Name: DAEDALUS
Inner Diameter: 55mm
Product Material: Cast Aluminum
Use Route: Fixing of the Engraving Machine Spindle
Product Features: Full Sandblasting, Smooth Appearance, Anti-slip Wire Design, Long Service Life
