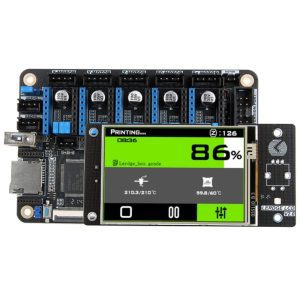

LERDG-Z NO DRIVER PRINTER MOTHERBOARD

ΚΩΔΙΚΟΣ: 47308

99,99 €

Κύρια χαρακτηριστικά

Αναλυτικές λεπτομέρειες

Διαθεσιμότητα: 1 σε απόθεμα

Αγαπημένα

Αφαίρεση

The Lerdge-Z motherboard comes with the functions of printing pause, printing saving, and restarting printing after power-on.

The heated bed with a power of no more than 150w can be connected directly to the motherboard.

The Lerdge Z motherboard can pause printing when the filament is run out,and then resume printing after the filament is loaded.

The Lerdge-Z motherboard defaults to offline printing (Use TF card or U disk printing).

For large-size printer, if you need to connect external drivers to a large motor, such as 57 motor, 86 motor, etc.

The Lerdge motherboard adopts PID temperature control to make the printing temperature more stable.

Lerdge Z has a patented automatic leveling solution, the number of automatic leveling points can reach up to 1024 platform sampling points,which realize efficiently the adjustment of the platform and make the printing quality better.

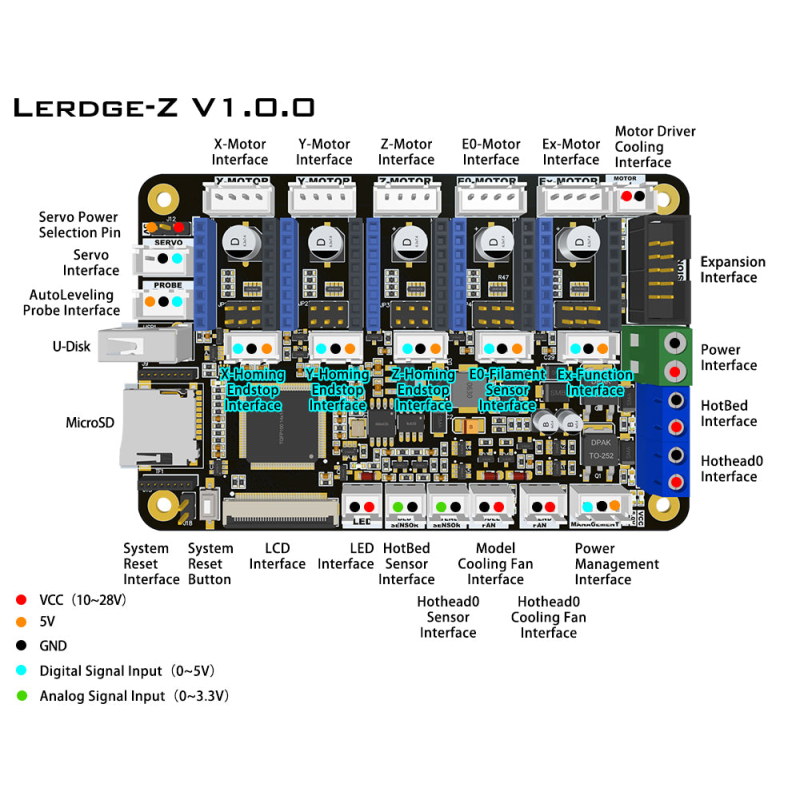

Motor driver cooling fan interface:
When any motor drive is enabled, the fan is turned on
When all motor drives are disabled, the fan is turned off

Hothead0 cooling fan interface:
When the temperature of the hot head is higher than 45℃, the fan is turned on
When the temperature of the hot head is lower than 40℃, the fan is turned off

Ex-motor interface:
Ex axis can be used to synchronize XYZE0 motor movement or expand to E1 motor interface

System reset interface:
A two-wire normally open switch can be connected here to realize the emergency stop button

Servo power selection pin:
Select the servo power supply voltage between 5V and the mainboard power interface voltage
Short-circuit the middle and left pins, and select 5V power
Short-circuit the middle and right pins, and select the power interface voltage
