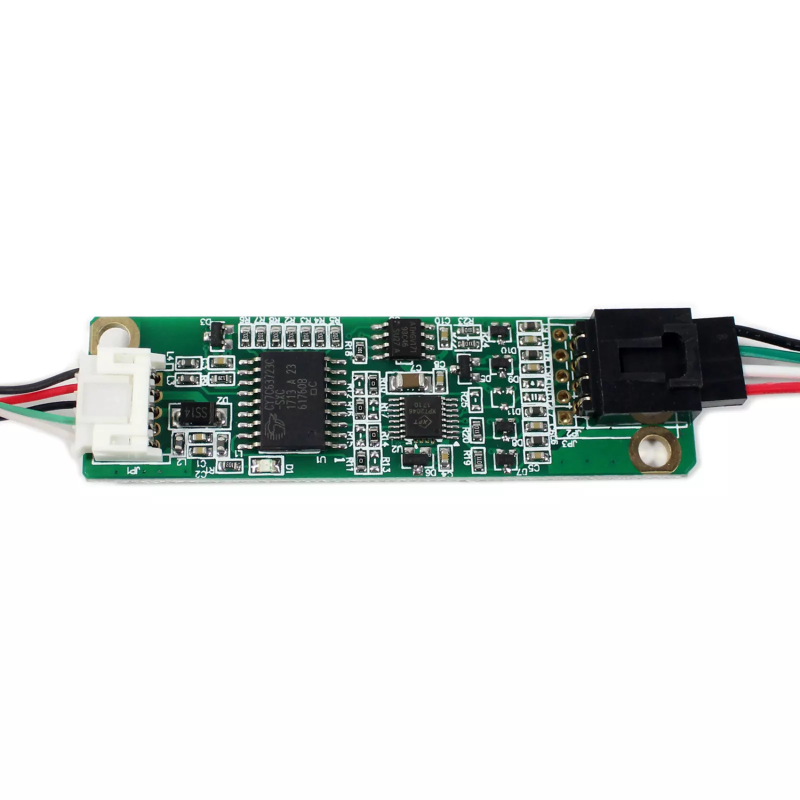

USB Type Controller

Dimension Size: 71mm x 20mm x 10mm

Power Requirements: D.C.+5V (100mA typical,50mV peak to peak maximum ripple and noise)

Operating Temperature: 0 to 50°C

Storage Temperature: -40 to 80°C

Relative Humidity: 95% at 60°C

Interface USB 1.1 & 2.0

Resolution: 2048×2048 resolution

Report rate USB Model: Max. 160 points/sec

Response time: Max. 20 ms

Attached Cable 6′ shielded cable with USB-A connector for USB port

Regulatory Approvals: FCC-B , CE, Unaffected by EMI from other nearly and other display devices

EMI Unaffected by environmental EMI

Panel resistance: 4 wire resistive model: 200 ~ 900 ohm

MTBF: 200,000 hrs

PIN1: Y- PIN2: X- PIN3: Y+ PIN4: X+

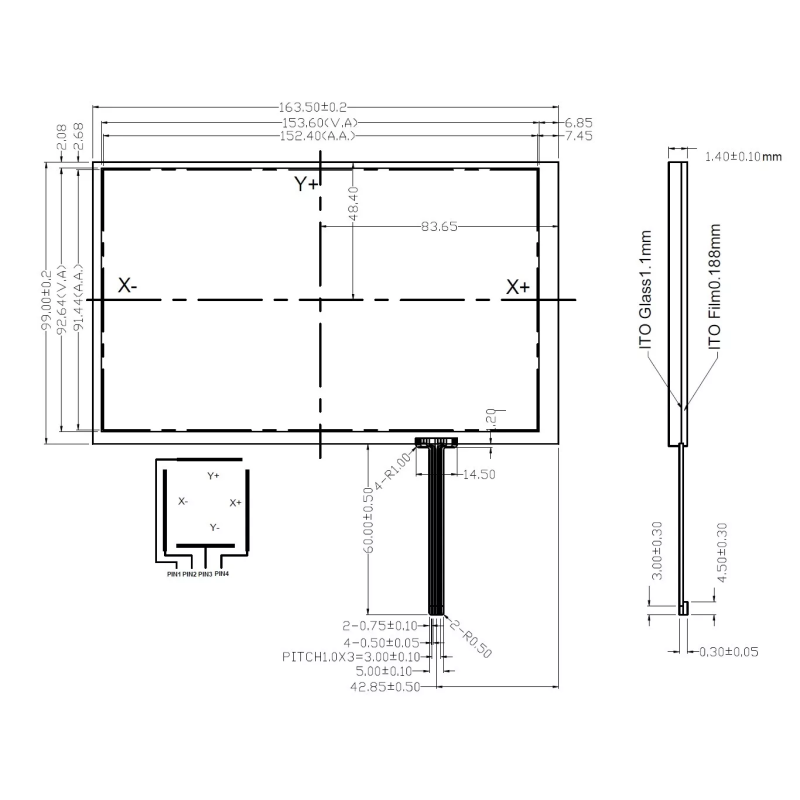

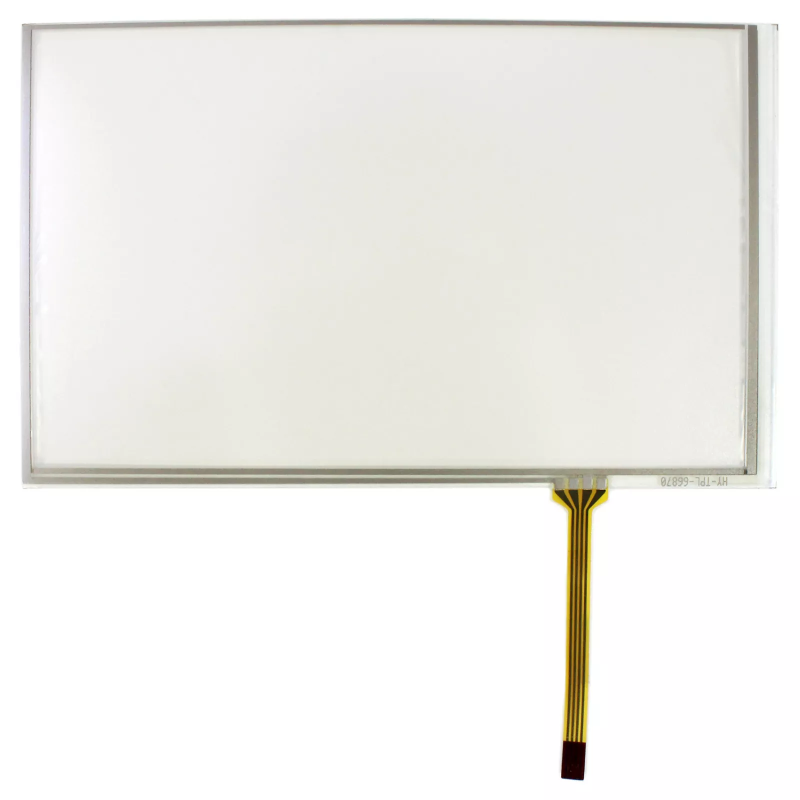

Touch Panel

Dimension Size: 163.5mm x 99mm

Display Area: 152.4mm x 91.44mm

FPC connector: 4pin 0.5mm pitch bottom contact.
