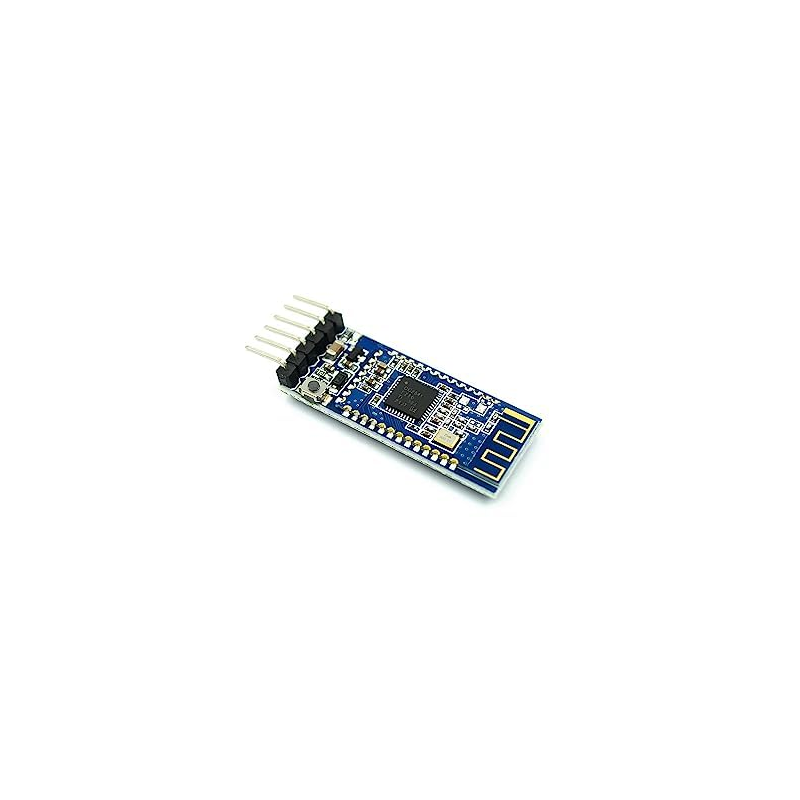

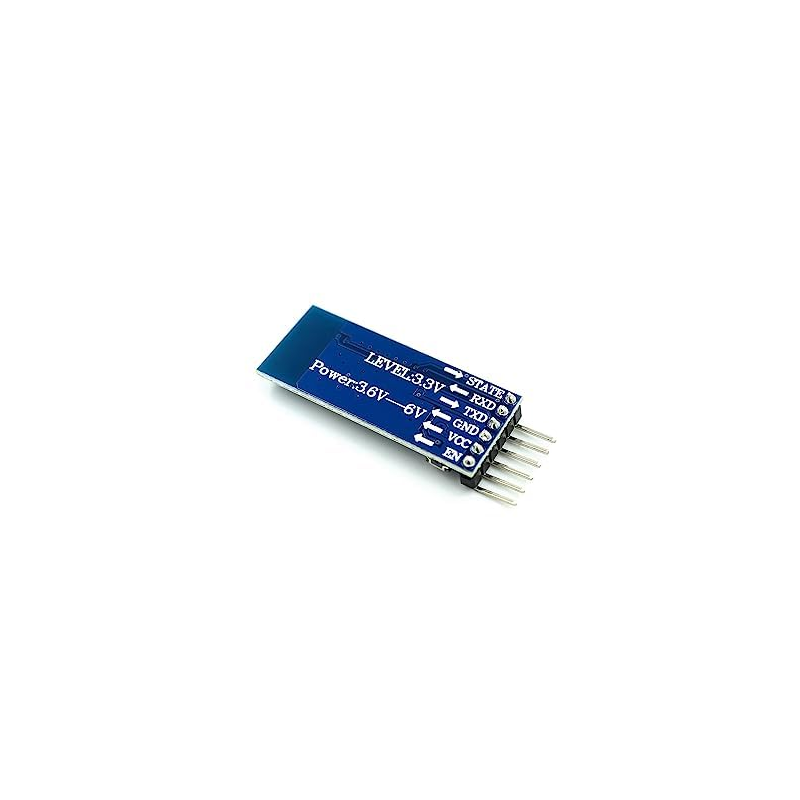

AT-09 Bluetooth 4.0 UART Transceiver Module CC2541 compatible HM-10

AT-09 Bluetooth 4.0 UART Transceiver Mod...

ΚΩΔΙΚΟΣ: 50271

7,99 €

Κύρια χαρακτηριστικά

Αναλυτικές λεπτομέρειες

Διαθεσιμότητα: 5 σε απόθεμα

Αγαπημένα

Αφαίρεση

Cc2541 Bluetooth chip solution Fully qualified Bluetooth v40 Ble, full speed Bluetooth operation with full piconet support and scatter net support Incredible small size with 33V input and rohs compliant If you are in need of such a 40 Ble Bluetooth module, mcu can be set up, also can controlled by a remote Bluetooth device for setting, can transfer data and can remotely control 10 pio pins, so, the best choice is hm-10 Bluetooth module; Can replace hc-05, hc-06, hc-07 etc

BT Version: Bluetooth Specification V4.0 BLE Send and receive no bytes limit.

RF Power: -23dbm, -6dbm,0dbm,6dbm,can modify through AT Command AT+POWE

Power:In sleep mode 400uA~1 .5mA,Active mode 8.5mA.Working temperature:–5 ~ +65 Centigrade

Size: HM-10 26.9mm x 1 3mm x 2.2 mm
