ESP32-8048S070N
ΚΩΔΙΚΟΣ: 50640
99,99 €
Κύρια χαρακτηριστικά
Διαθεσιμότητα: 5 σε απόθεμα

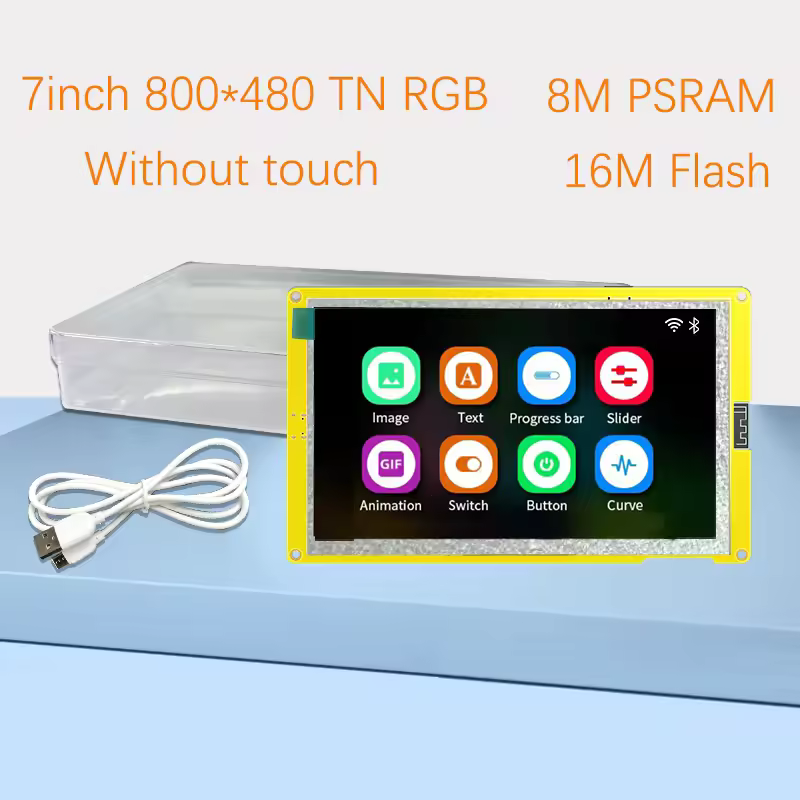

ESP32 development board-8M PSRAM 16M Flash, standard 7.0-inch TFT screen Without touch.

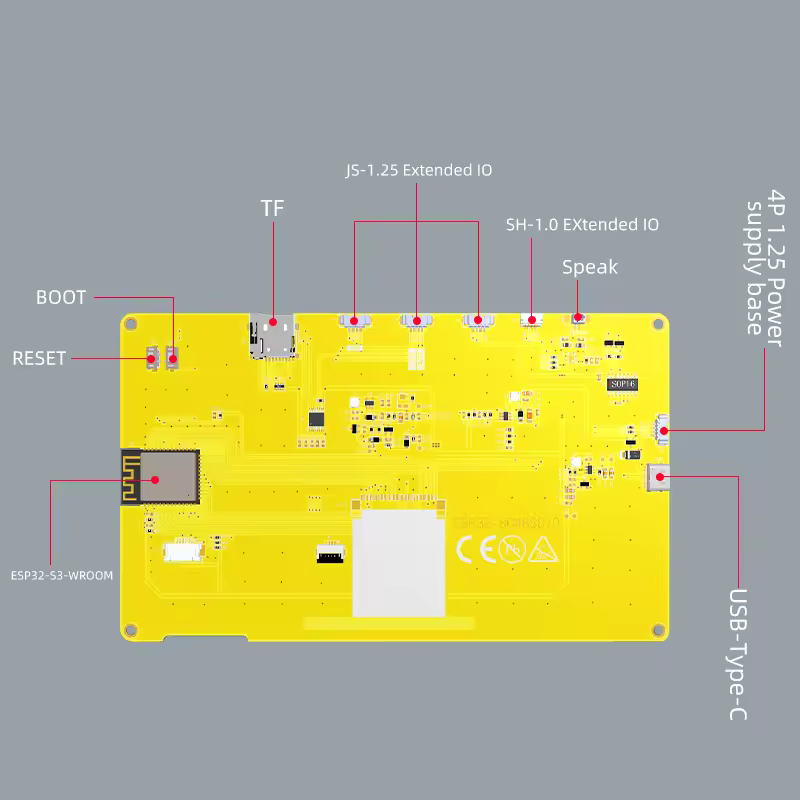

ESP32-8048S070 motherboard introduction
ESP32 = MCU + WiFi + Bluetooth
ESP32-8048S070 development board is based on the company’s ESP32-S3 controller, dual-core CPU, clock frequency up to 240MHZ, integrates a wealth of resource peripherals, high-speed SDIO, SPI, UART and other functions, supports auto-matic download.
Remote IoT Development Board
ESP32-80485070 development board, which gives full play to the development of the Internet of Things, is a real Internet of Things development tool with a control-lable display screen, which can be used for APP remote control, remote environmental data collection, remote data fusion, remote Parameter settings and other loT de-velopment applications.

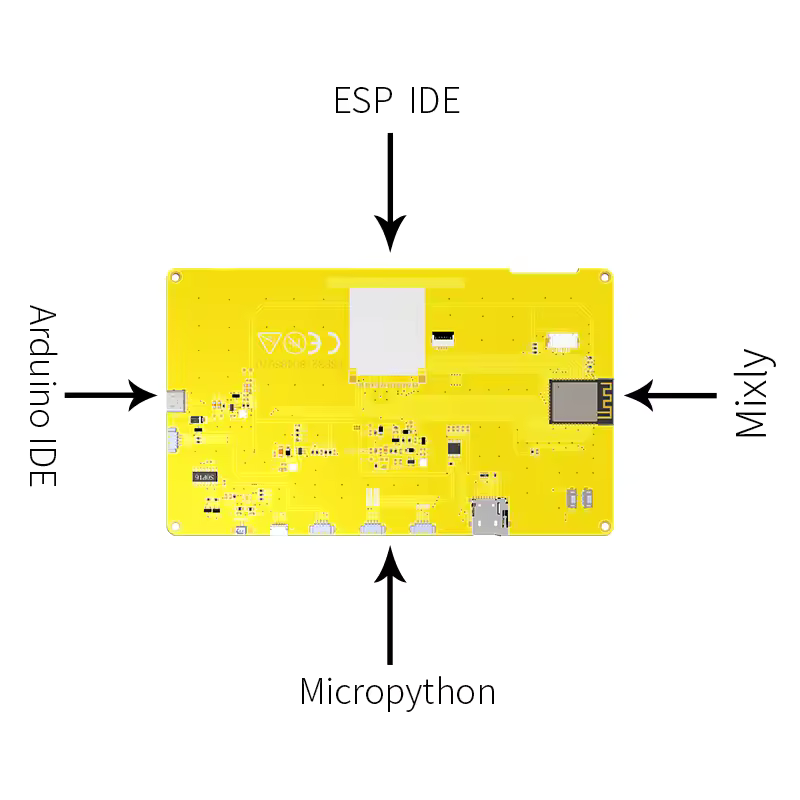

App drag and drop programming
The development of remote IOT app adopts blank app software, which can customize the personalized interface on the terminal device, with rich built-in controls and beautiful U interface. It can customize the app control module and interface, which is very suitable for making an app interface that meets its own requirements.
No Touch
Use low-power dual-core 32-bit CPU, which can be used as an application processor.
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB SRAM
Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFI upload
Support TF card
Support multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development
Working voltage: 4.75-5.25V
SPIFlash default 32Mbit
RAM internal 520KB
Wi-Fi 802.11b/g/n/e/i
Bluetooth Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Support TF card, maximum support 4G
IO port 9
Serial port rate default 115200bps
Spectrum range: 2400 ~2483.5MHz
Antenna form Onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Transmit power 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiving sensitivity CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Moderm-sleep: the lowest can reach 20mA@5V
Light-sleep: the lowest can reach 6.7mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Working temperature: -20 ℃~ 70 ℃
Storage environment: -40 ℃~ 125 ℃, <90%RH
