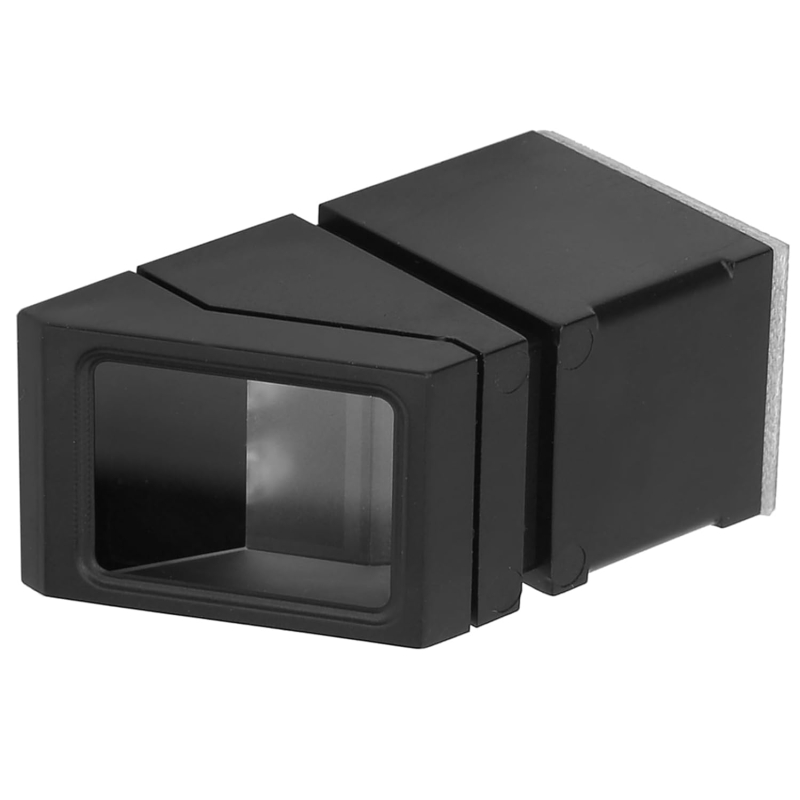

R307S Fingerprint Identification Module ...

ΚΩΔΙΚΟΣ: 50342

37,50 €

Κύρια χαρακτηριστικά

Διαθεσιμότητα: 5 σε απόθεμα

Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks​Low power consumption, low cost, small size, excellent performance.

Integrated image collecting and algorithm chip together, ALL-in-One.
Fingerprint reader can conduct secondary development, can be embedded into a variety of end products.
Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
Low power consumption, low cost, small size, excellent performance
Professional optical technology, precise module manufacturing technics
Good image processing capabilities, can successfully capture image up to resolution 500 dpi
Finger detection function

Ως εξάρτημα, δεν καλύπτεται από εγγύηση

Type: Optical
Backlight: Blue

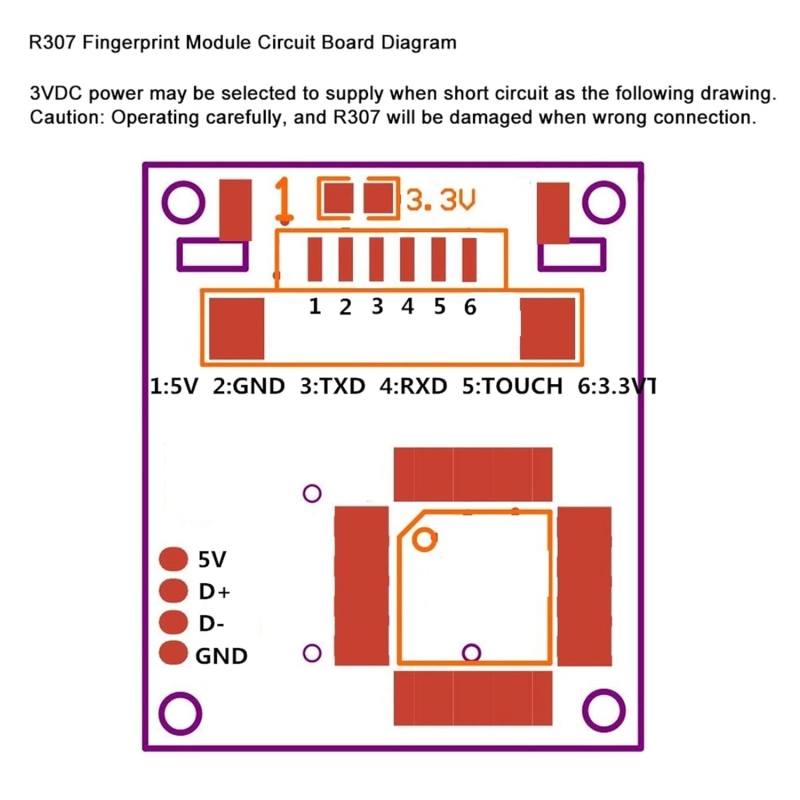

Interface: USB2.0/UART(TTL logical level)
RS232 Communication Baud Rate: 9600BPS~115200BPS changeable
Verification Speed: 0.1 sec
Scanning Speed: 0.2 sec
Character File Size: 256 bytes
Template Size:512 bytes
Storage Capacity: 1000
Security Level: 5 (1,2,3,4,5(highest)
FRR (False Rejection Ratio): ≤1%
FAR (False Acceptance Ratio): ≤0.0001%
Resolution: 500 DPI
Voltage: DC 4.2-6V
Working Current: 50mA (Typical)
Peak Current: 75mA
Matching Method: 1 : N
Operating Temperature: -20-50 °
Image Capture Surface: 1.5×1.1mm
Overall Size: 4.5×2.4x2cm/1.77×0.94×0.79″
