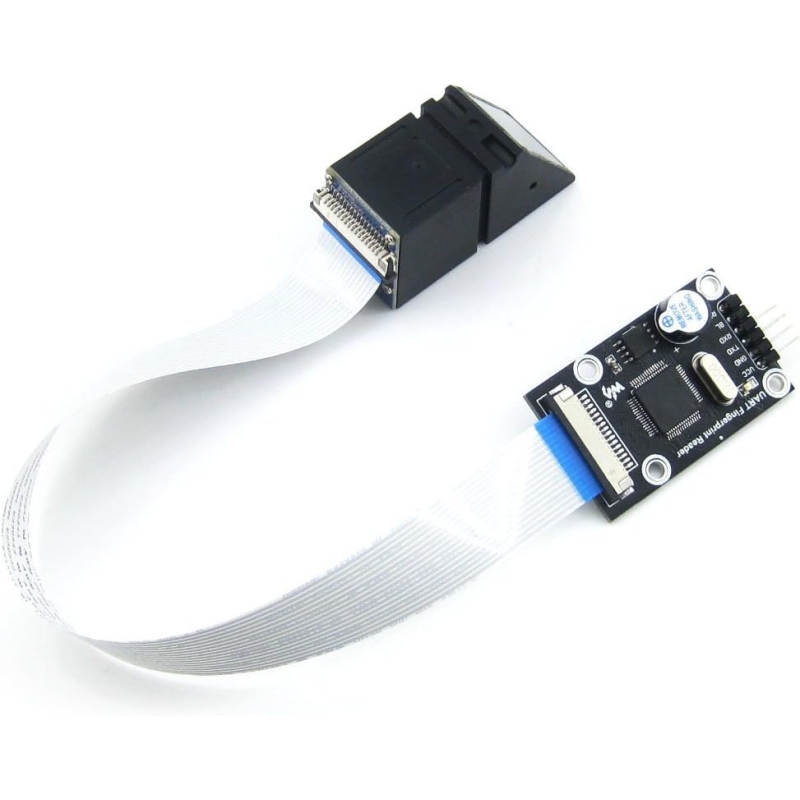

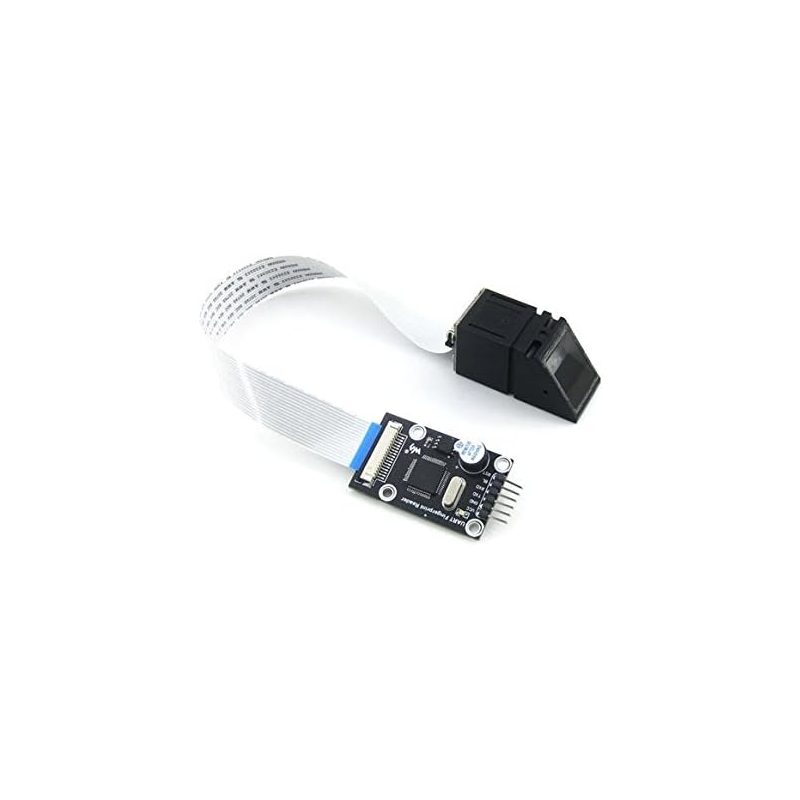

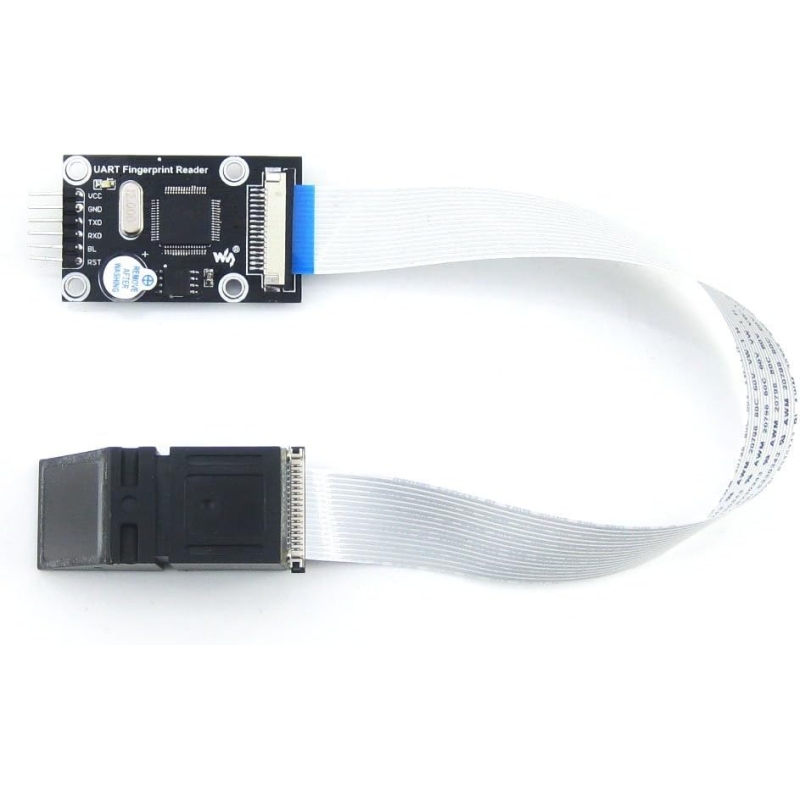

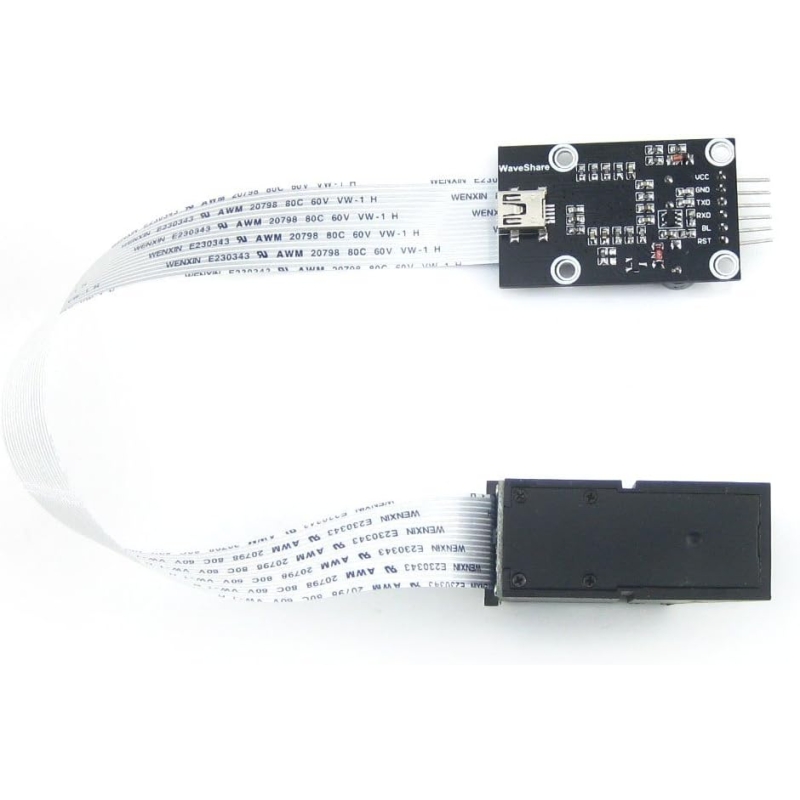

UART Fingerprint Reader STM32F205 TFS-D400

UART Fingerprint Reader STM32F205 TFS-D400 - Image 2

UART Fingerprint Reader STM32F205 TFS-D4...

ΚΩΔΙΚΟΣ: 50339

125,00 €

Κύρια χαρακτηριστικά

Αναλυτικές λεπτομέρειες

Διαθεσιμότητα: 1 σε απόθεμα

Αγαπημένα

Αφαίρεση

UART Fingerprint Reader is a fingerprinting module designed for secondary development, high-speed for identification, high stability. It is an intelligent module that provides functionalities like fingerprint recording, image processing, feature extraction, template generation, template storage, fingerprint matching and searching, etc.

You can use this sensor for applications as:

Fingerprint lock
Fingerprint safe deposit box
Access control system
Person identification
Authority management

Ως εξάρτημα, δεν καλύπτεται από εγγύηση

Sensor: HD optical
Power: 3.3 – 7.5V
Current: <50ma
Input Time: <0.5s
Matching Time: <0.5s
Communication interface: UART
Communication baud rate: 9600 – 57600bps
Anti-wearing: 1 million times
Onboard high-speed processor STM32F205
Commercial fingerprinting algorithm, faster identification
High-accuracy optical sensor, standard 16-pin interface, allows users to choose optical/semiconductor sensors
Divided structure: fingerprint sensor + processing circuit + algorithm platform
Easy for developing, controlled via UART, supports any MCU with UART
Open protocol, it’s available to freely input/output fingerprint images, fingerprint feature file and other fingerprinting actions
